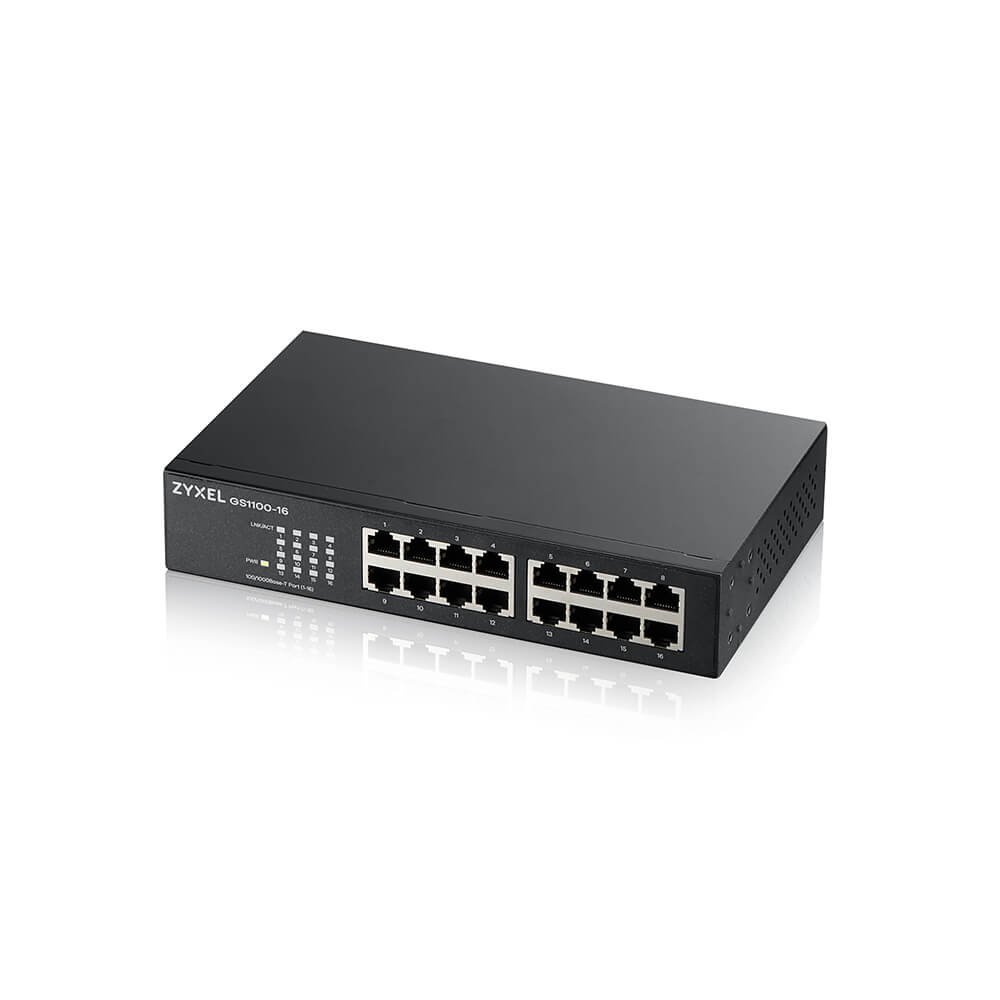

GS1100 - 16 - port GbE Unmanaged Switch

Verified Product

NPR 9,690

Product Overview

Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.

Important Information

Hover to view

SKU

73

Availability

Out of Stock

Product Specification

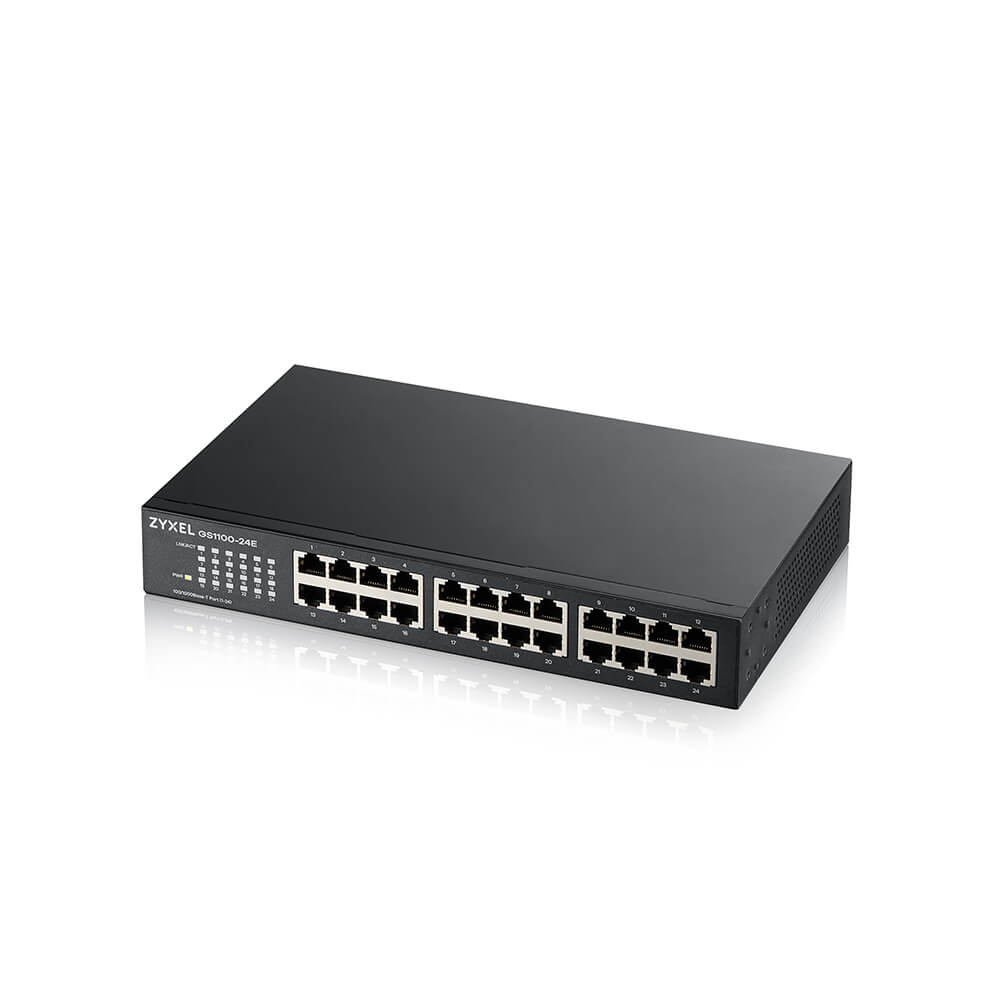

GS1100-10HP GS1100-16 GS1100-24E GS1100-24 Description Product name 8-port GbE Unmanaged PoE Switch with GbE Uplink 16-port GbE Unmanaged Switch 24-port GbE Unmanaged Switch 24-port GbE Unmanaged Switch with GbE Uplink Switch class Unmanaged Unmanaged Unmanaged Unmanaged Port Density Total port count 10 16 24 26 100/1000 Mbps 8 16 24 24 Gigabit SFP 2 - - 2 PoE 802.3at PoE ports 8 - - - Total PoE budget (watts) 130 - - - Performance Switching capacity (Gbps) 20 32 48 52 Forwarding rate (Mpps) 14.88 23.8 35.7 38.7 Packet buffer (byte) 256 K 525 K 525 K 525 K MAC address table 8 K 8 K 8 K 8 K Jumbo frame 9 K 9 K 10 K 10 K Auto MDI/MDI-X Yes Yes Yes Yes 802.1p CoS Yes Yes Yes Yes VLAN packet pass-through Yes Yes Yes Yes Power Input voltage 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz Power supply External Internal Internal Internal Max. power consumption (watt) 156.1 10 13 14.5 Physical Specifications Dimensions (WxDxH)(mm/in.) 250 x 104 x 27/9.84 x 4.10 x 1.06 215 x 133 x 42/8.46 x 5.24 x 1.65 267 x 162 x 42/10.51 x 6.38 x 1.65 441 x 131 x 44/17.36 x 5.16 x 1.73 Weight (kg/lb.) 0.73/1.6 0.9/1.98 1.5/3.3 1.8/3.96 Included accessories Power adapter Power cord Wall-mount kit Power cord Wall-mount kit Rack mounting kit* Power cord Wall-mount kit Rack mounting kit* Power cord Rack mounting kit* Green Features Fanless Yes Yes Yes Yes Environmental Specifications Operating Temperature 0°C to 50°C / 32°F to 122°F 0°C to 40°C / 32°F to 104°F 0°C to 40°C / 32°F to 104°F 0°C to 40°C / 32°F to 104°F Operating Humidity 10% to 90% (non-condensing) Storage Temperature -40°C to 70°C/-40°F to 158°F Storage Humidity 10% to 95% (non-condensing) MTBF (hr) 1,000,070 1,156,942 366,919 388,378 Heat dissipation (BTU/hr) 89 32.86 43.53 51.25

Downloads

User Guide Data Sheet
