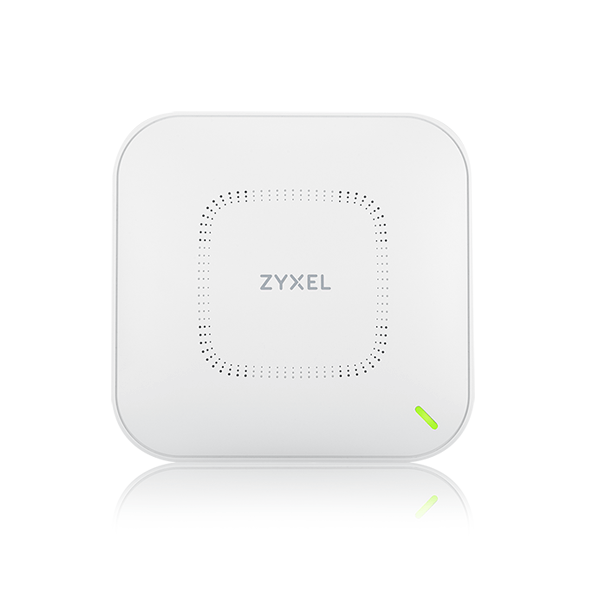

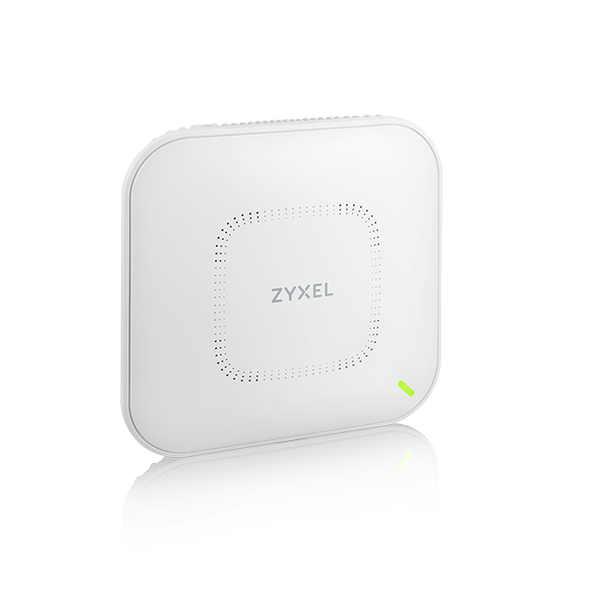

Zyxel WAX 650-S (AX3600 8-Stream WiFi 6 Dual-Radio NebulaFlex Pro Access Point)

Verified Product

NPR 1,00,890

Product Overview

The Zyxel WAX650S, also known as the AX3600 8-Stream WiFi 6 Dual-Radio NebulaFlex Pro Access Point, is a high-performance, enterprise-grade solution optimized for dense environments like schools, offices, and commercial spaces. It delivers blazing-fast wireless speeds, robust RF performance, and flexible management options to fit diverse deployment needs.

Important Information

Hover to view

SKU

94

Availability

Low Stock

Product Specification

Wireless Standard: IEEE 802.11ax/ac/n/g/b/a (WiFi 6) WiFi Speed: Up to 1150 Mbps (2.4 GHz) + 2400 Mbps (5 GHz) = AX3600 total throughput Antennas: 4×4 Smart Antenna system Gain: 3 dBi (2.4 GHz), 5.8 dBi (5 GHz) Transmit Power: US: 28 dBm (2.4 GHz), 26 dBm (5 GHz) EU: 19 dBm (2.4 GHz), 26 dBm (5 GHz) Receive Sensitivity: Up to –105 dBm Ports: 1 × 1/2.5/5 GbE uplink (PoE supported) 1 × 1 GbE LAN port Power Options: PoE (802.3bt, up to 31 W) 12 V DC, 2.5 A input Dimensions: 230 × 235 × 53.5 mm (9.1″ × 9.3″ × 2.1″) Weight: 1.16 kg (2.56 lb) Operating Temperature: 0 °C to 50 °C Storage Temperature: –40 °C to 70 °C Humidity Tolerance: 10% – 95% (non-condensing)
